Analytix 21 - 机械设计和分析软件

自20世纪90年代以来，Analytix一直是设计工程师喜欢的程序。终于对该软件进行了一次早该进行的彻底检查，使其与Windows Vista、Windows 7/8、32位和64位兼容。还借此机会改进了用户界面，同时让长期用户熟悉基本功能。

在升级中包括了Analytix和Dynamic，并将新程序称为Analytix 21.

Analytix是一个用于PC的复杂机制设计和分析软件包，让工程师重新掌握创作过程。

通过自动化繁琐、易于出错的数字运算分析并为您提供即时视觉反馈，您需要做一些令人满意的事情—改进您的设计。

使用Analytix，无需输入冗长的复杂公式来分析您的设计。运动学方程嵌入在软件中。所以，本质上，数学是为你完成的。即刻，并且准确。全运动学、逆动力学和力分析。它甚至可以进行您可能没有时间或精力去做的分析。例如设计上的统计或minimum/maximum公差叠加。或者对每一种可能的情况进行强制分析，而不是你认为的不好情况。

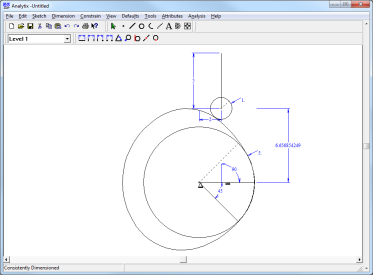

这很简单。您所要做的就是以功能性点对点中心线格式快速绘制几何图形，使用鼠标单击驱动角度或执行器，分配值（速度、加速度、质量、惯性等），然后单击其他点或线以查看结果条件。您的分析已完成。

假设你没有得到你预想的结果。没问题。使用Analytix，您可以更改设计中的任意尺寸，并立即自动获得更新的速度和加速度信息。而不必重新编辑或修改你的运动方程。Analytix是如此快速和易于使用，你甚至有时间探索全新的设计方案，仍然满足或炒作您的项目进度。

像你一样工作

Analytix的设计理念是，您的工作不只是设计替代设计。你有会议要参加，有供应商要谈，还有其他事情占用你的时间。所以当你坐下来设计时，你不想做的事情就是拿出一本400页的软件手册来重新学习一个程序。得益于参数化草图绘制界面，Anslytix就像使用纸和铅笔一样。只会更方便。因为你做修改的时候，不用重新画整个设计。

更关键的是，Analytix既方便又直观。这是一个提供内置交互式计算器的参数模拟软件。它允许您编写驱动您的设计或使用模拟输出的方程。现在，您可以轻松的对步进电机、电磁力或液压或其他可以用方程定义的实体进行建模。还可以参数化的绘制任意设计变量的图形和表格，例如力、加速度、距离和力矩。

新功能

Analytix 21的改进功能包括：

• 可调整大小的对话框

• 多级撤销/重做

• 实时动画

• 工具栏

• 近来文件菜单

技术规格

Parametric Sketching-2D

• 获得Patented变分几何引擎，具有自动尺寸标注功能

机械模型输入

• 距离和角度值】速度和加速度

• 输入距离和角度的公差

• 作用力和力矩、弹簧、阻尼器、执行器

• 质量和惯性矩

机械模型输出

• 几何位置、速度、加速度

• 反作用力

• 剪切力和弯矩

• 桁架的应力和挠度

• 公差叠加、灵敏度、轨迹、区域、absolute或统计

模拟和分析工具

• 动画、点轨迹、封套

• 方程计算器和迭代方程求解器

• 输出参数表和图表

数据交换

• DXF输入和输出

• Windows动态数据交换（DDE），剪切和粘贴

单位

• SI

• fps

• ips

• 用户定义的单位系统

系统需求

运行Microsoft Windows 95或更高版本的Pentium class PC（通过Windows 7/8测试）

8MB可用内存，10MB可用磁盘空间

【英文介绍】

Analytix has been a favorite program of design engineers since the 1990's. We have finally done a long overdue overhaul of the software so that it is compatible with Windows Vista, and Windows 7/8, 32 bit and 64 bit. We have also taken the opportunity to improve the User Interface, while keeping the basic functionality familiar to our long-time users.

We have included both Analytix and Dynamix in the upgrade, and call the new program Analytix 21.

Analytix is a sophisticated mechanism design-and-analysis software package for the PC that puts you, the engineer, back in control of the creative process.

By automating tedious, error-prone number-crunching analysis and giving you the instant visual feedback you need to do something more satisfying--improve your design.

With Analytix, there's no need to enter long, involved formulas to analyze your designs. Kinematic equations are embedded in the software. So, in essence, the math is done for you. Instantly. And accurately. Full kinematic, inverse dynamic and force analysis. It even does the analysis you may not have had the time or luxury to get to. Such as a statistical or minimum/maximum tolerance stack-up on your design. Or force analysis for every possible scenario, instead of what you think (or hope) is the worst case.

It's simple. All you have to do is quickly sketch your geometry in a functional point-to-point centerline format, use your mouse to click on a driving angle or actuator, assign values (for velocity, acceleration, masses, moments of inertia, etc.), then click on any other point or line to see resultant conditions. Your analysis is complete.

Suppose you don't get the results you'd envisioned. No problem. With Analytix, you can change any dimension on your design and get updated velocity and acceleration information automatically and instantly. Without having to reprogram or modify your equations of motion. Analytix is so quick and easy to use, you'll even have time to explore entirely new design options and still meet or beat your project schedule.

Works the way You Do

Analytix is designed with the understanding that your job involves a lot more than engineering alternative designs. You've got meetings to attend, vendors to talk to, and other responsibilities vying for your time. So when you do sit down to design, the last thing you want to have to do is pull out a 400-page software manual to relearn a program. Thanks to a unique parametric sketching interface, Analytix is like using paper and pencil. Only easier. Because when you make modifications, you don't have to redraw the entire design.

What's more, Analytix is as flexible as it is intuitive. It's the only parametric simulation software to offer a built-in interactive calculator. It lets you write equations that drive your design or use simulation outputs. Now you can easily model stepper motors, electromagnetic or hydraulic forces, or any other entity that can be defined with an equation. You can also parametrically plot graphs or tables of any of your design variables, such as forces, accelerations, distances, or moments.
